DOF P6 Professional Motion Simulator Platform 6-Axis-PRO

About

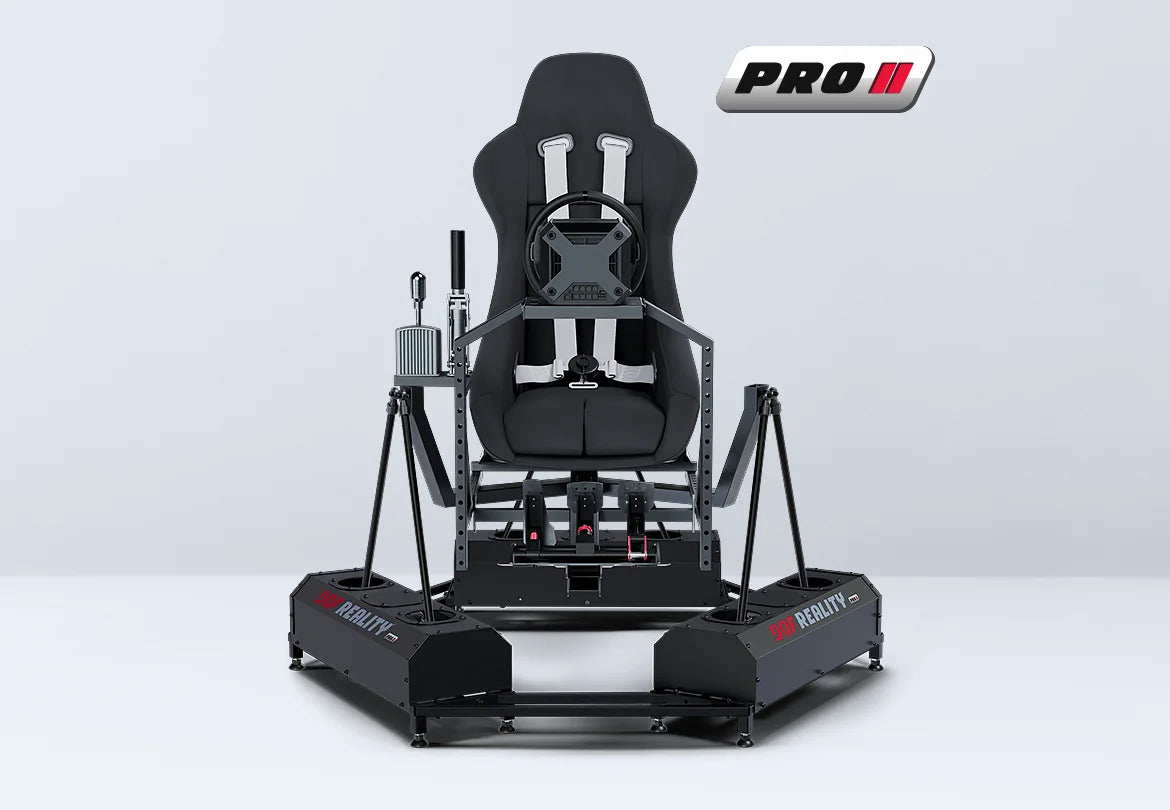

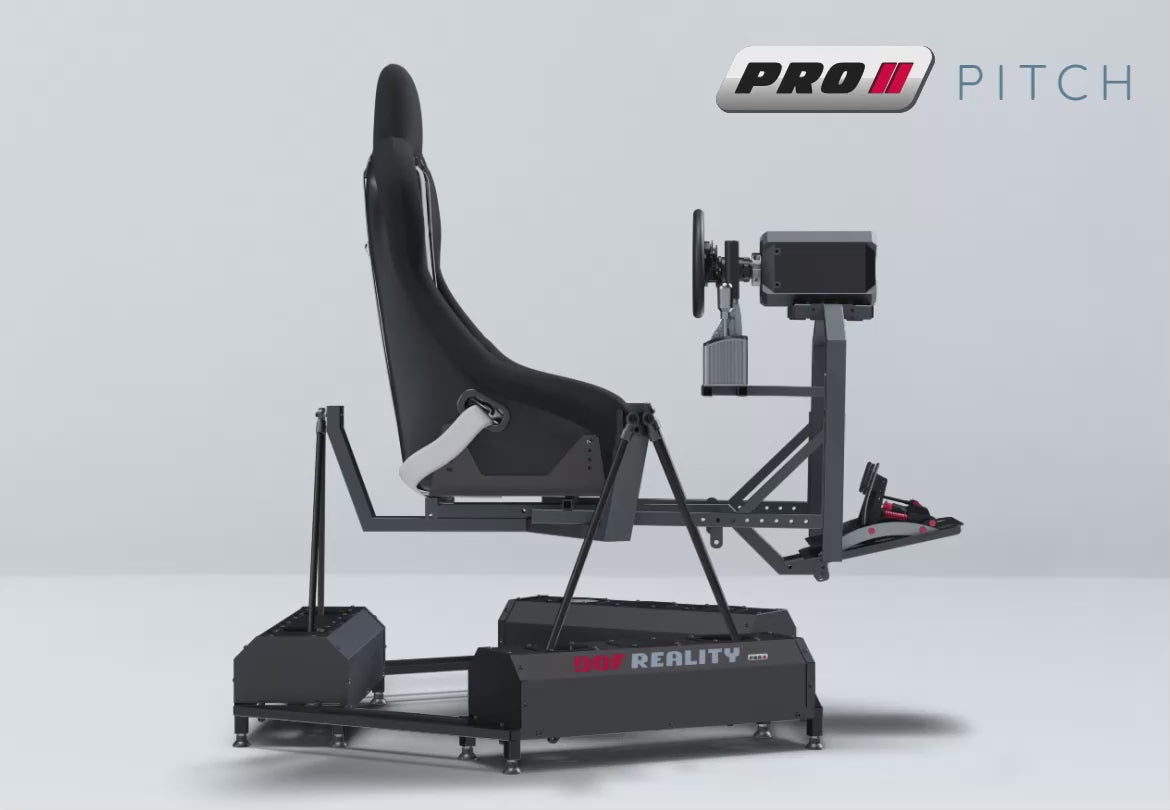

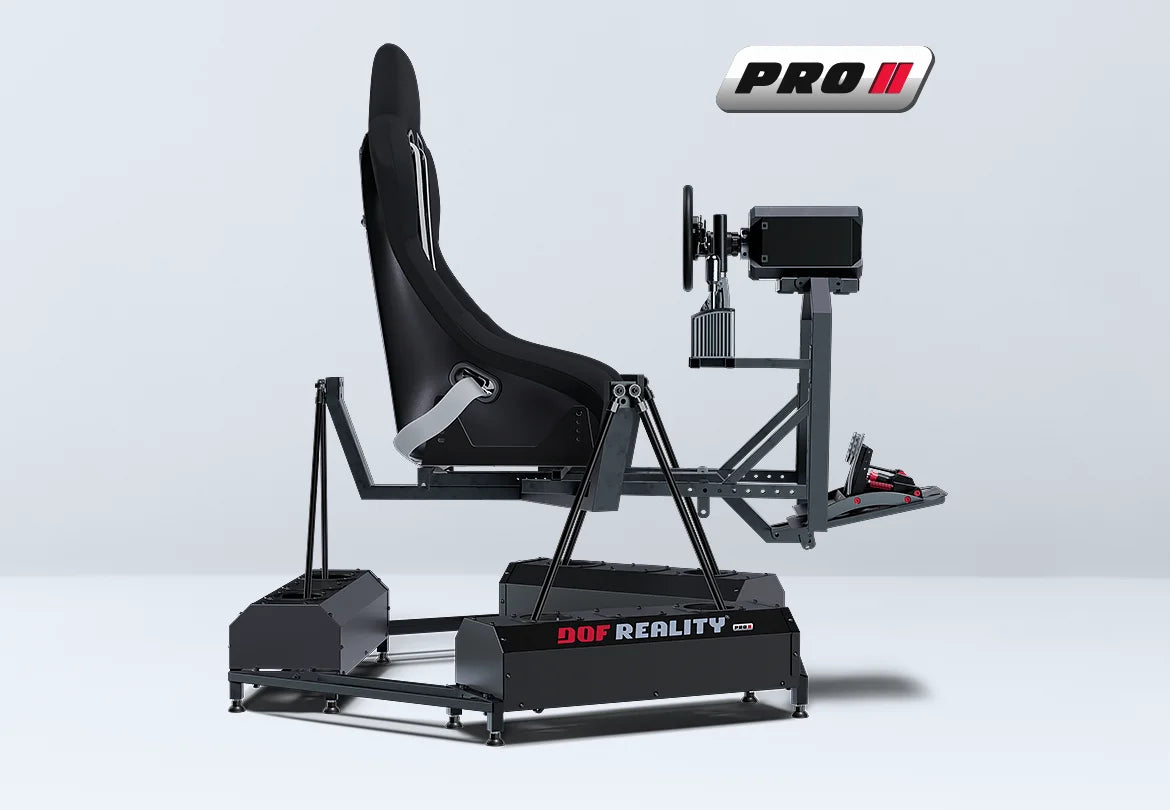

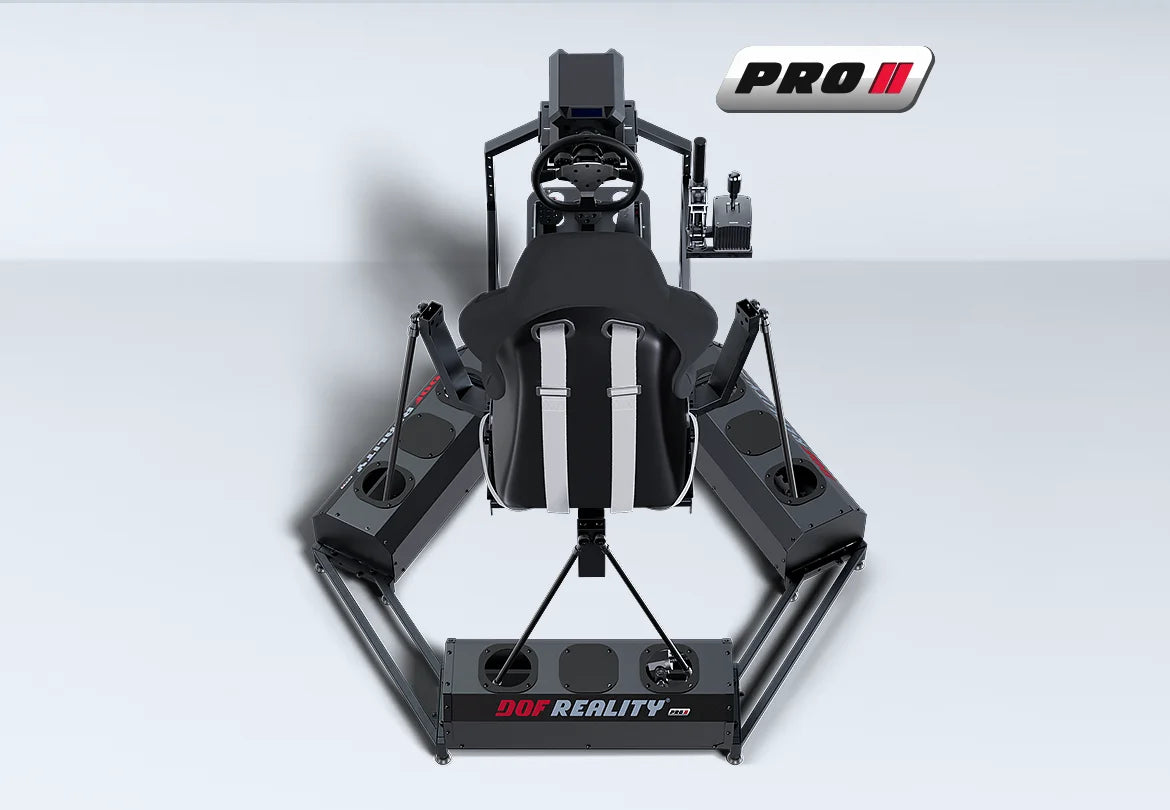

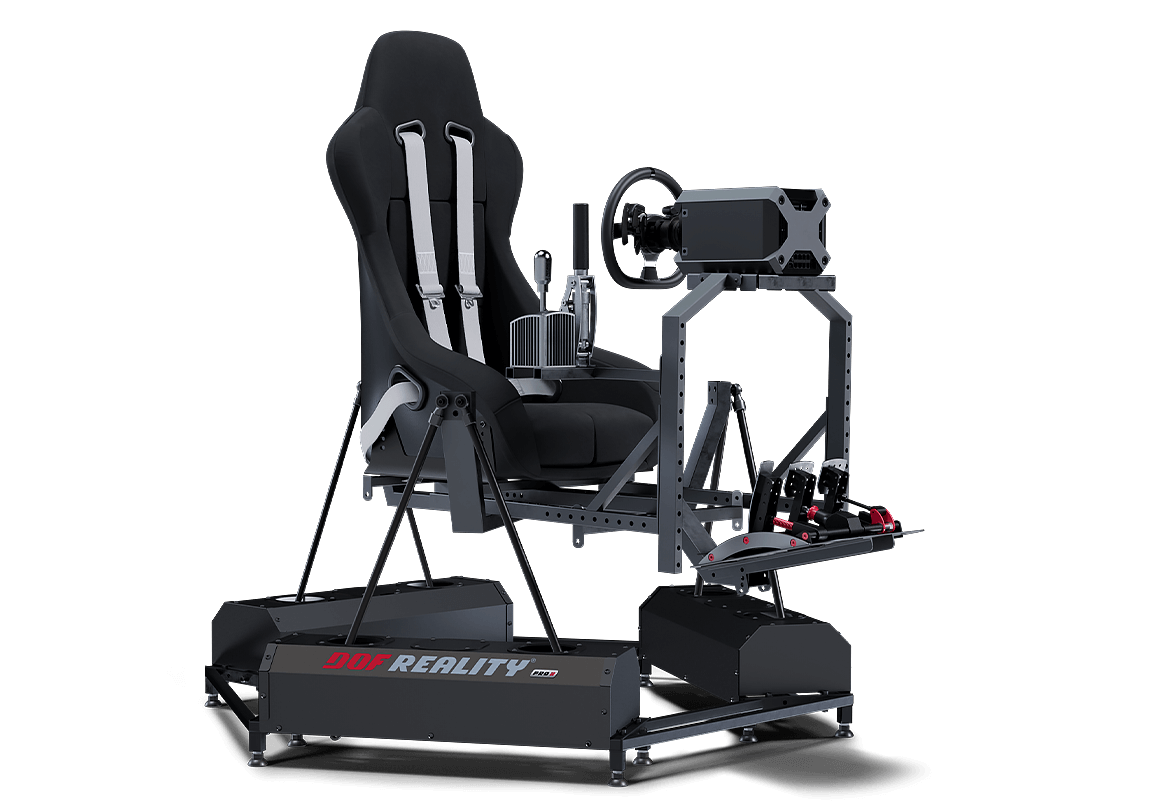

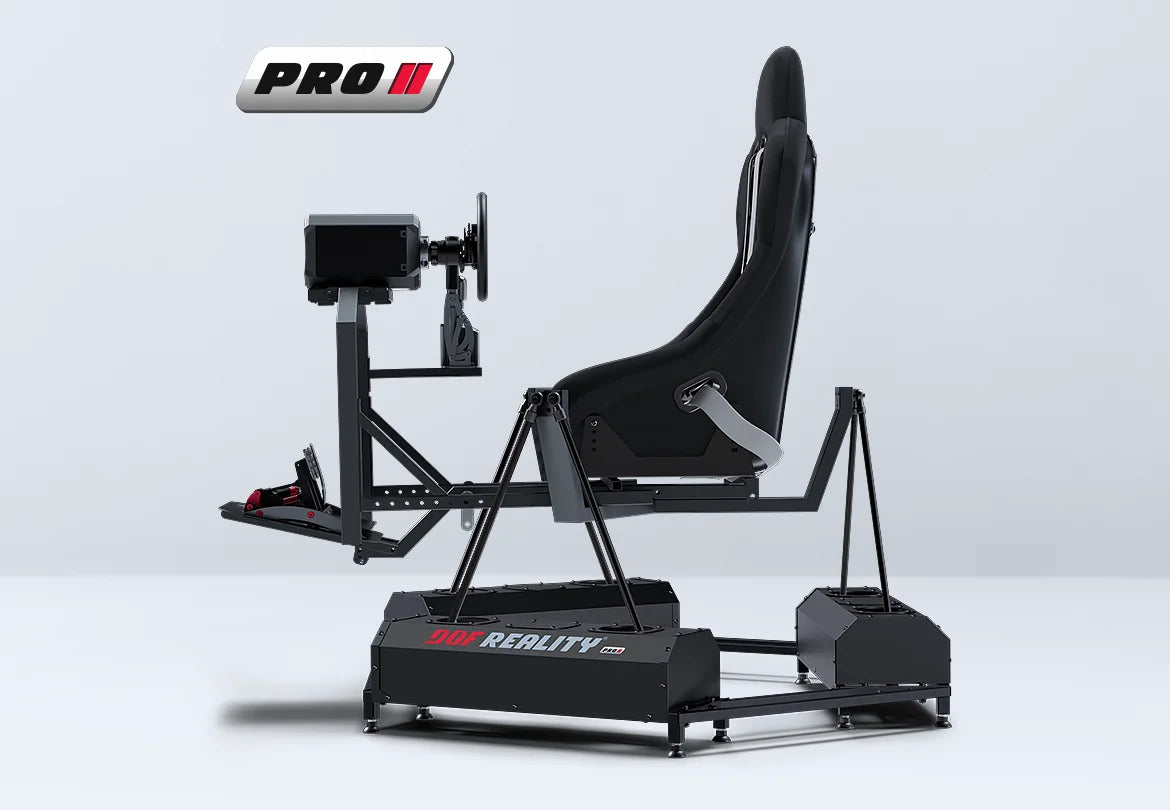

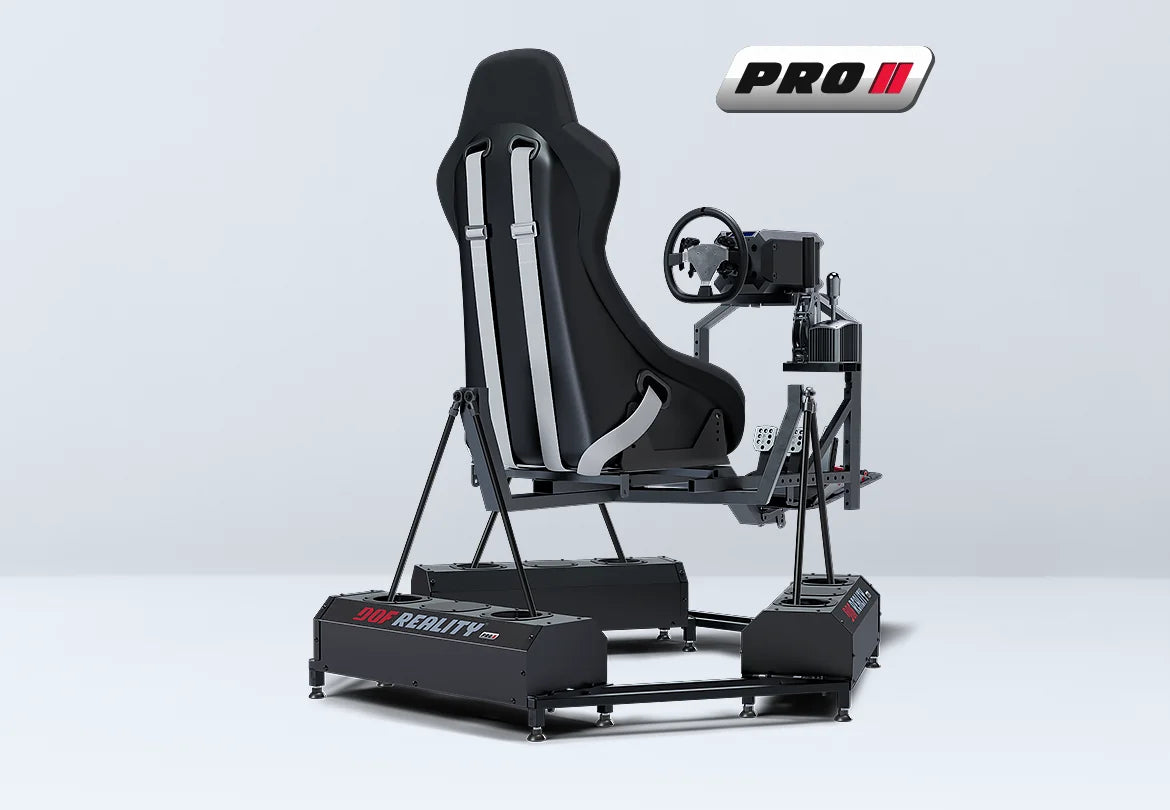

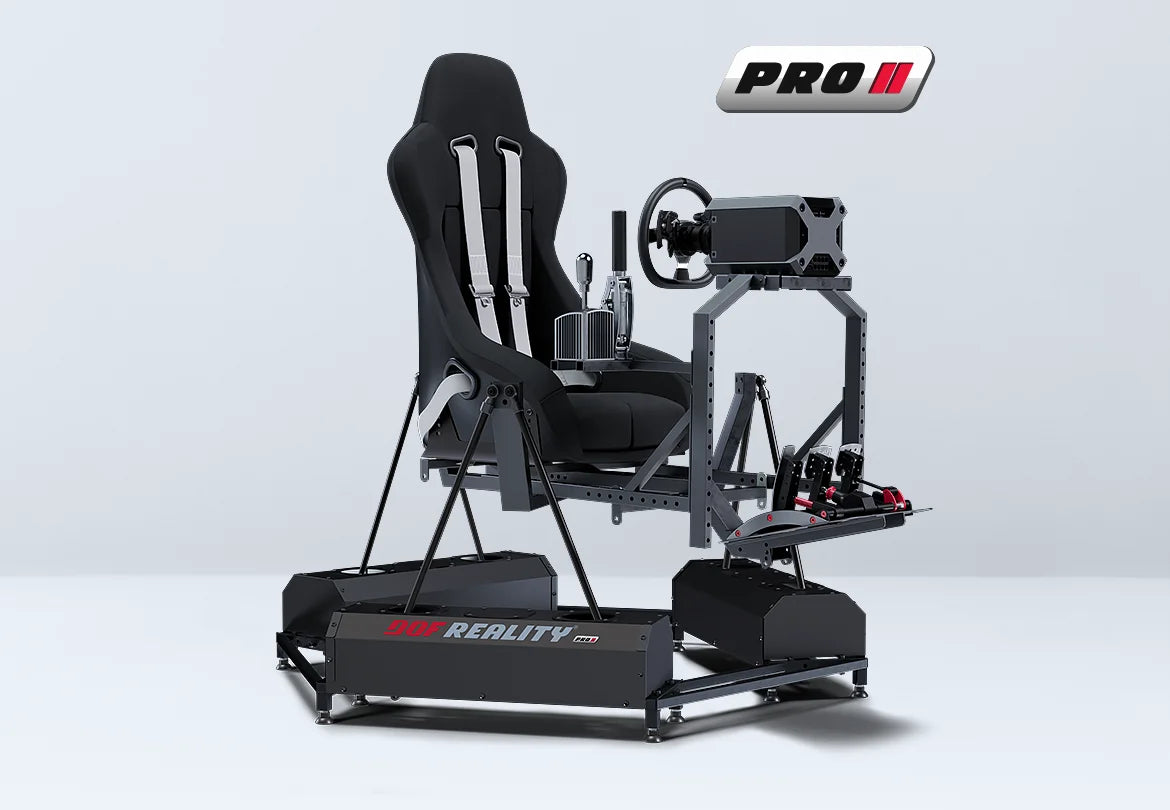

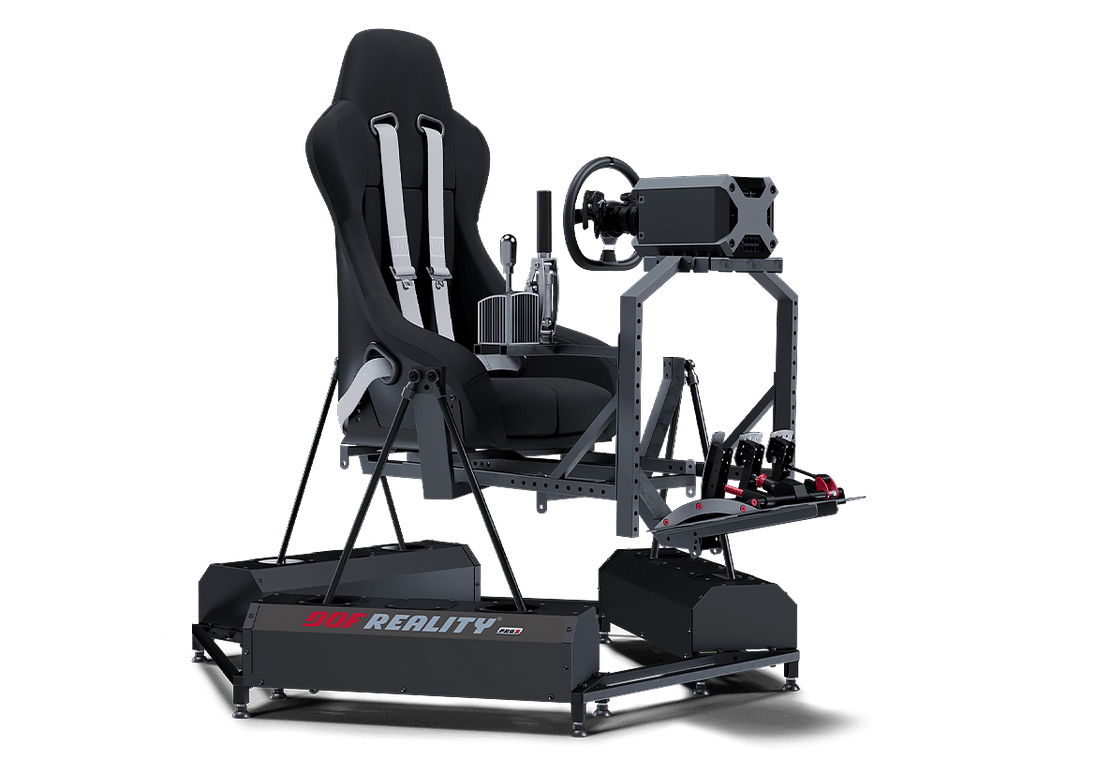

The Motion Racing Rig – 6-Axis PRO (P6) is a motion simulator platform designed to deliver full six degrees of freedom (6DOF), including heave, roll, pitch, surge, sway, and yaw. It is a compact platform engineered to reproduce motion in all directions, supporting both racing and flight simulation setups.

The platform is built for plug-and-play use and includes integrated motion software and hardware components. It supports a wide range of systems, including Windows, consoles, PlayStation, Xbox, and VR. The platform fully supports customers' own seats, controllers, and peripherals.

Features

• 6 degrees of freedom: pitch, roll, yaw, surge, sway, and heave
• Full platform motion with all controllers moving together with the seat
• Range of motion up to 17°
• Speed up to 75 cm/s (105°/s)
• Torque rated at 28 n/m
• Compatible with Windows, consoles, PlayStation, Xbox, and VR systems
• Integrated power drive motors and control unit with USB (100–240V / 110–220V)
• Includes SimRacingStudio software license
• Supports seat, wheel, pedals, joystick, and other controllers (not included)

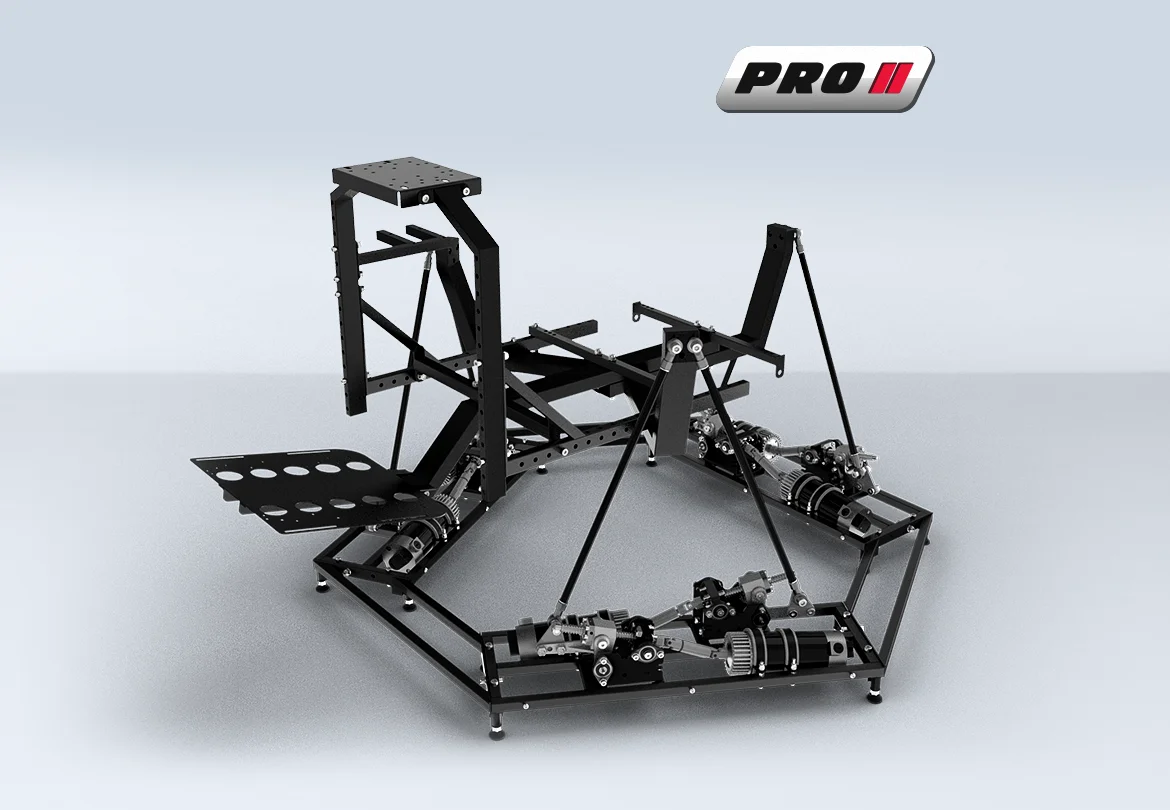

• Additional gearbox on each motor for smoother motion
• Plug-and-play platform with included cables and motion software
• Ships in two boxes for transport; requires assembly
• Over 15 optional add-ons available

Specifications

• Degrees of Freedom: 6DOF (Pitch, Roll, Yaw, Surge, Sway, Heave)
• Range of Motion: 17°
• Speed: 75 cm/s (105°/s)
• Torque: 28 n/m
• Platform Weight: 130–220 lbs (60–100 kg)
• Power Input: 100–240V / 110–220V
• Connectivity: USB

Warranty

• 1-year full warranty

FAQs

Does the platform include a seat or controllers?
No. Customers must purchase their own seat, VR headset, and controllers such as a wheel, pedals, or joystick.

Is the platform compatible with PlayStation and Xbox?
Yes. Compatibility depends on games that support motion data output. A MagicBox solution is available for supported titles.

Does the platform come assembled?
No. It is shipped in two boxes and requires assembly. It is a simple process.

What type of seat can be used?
Most bottom-mount car or gaming seats are compatible. Bucket racing seats and lighter seats are recommended but not required.

What is included in the package?
Rigid metal rig, mounts for seat or rails, integrated motors, control unit with USB, SimRacingStudio license, assembly tools, and necessary cables.
