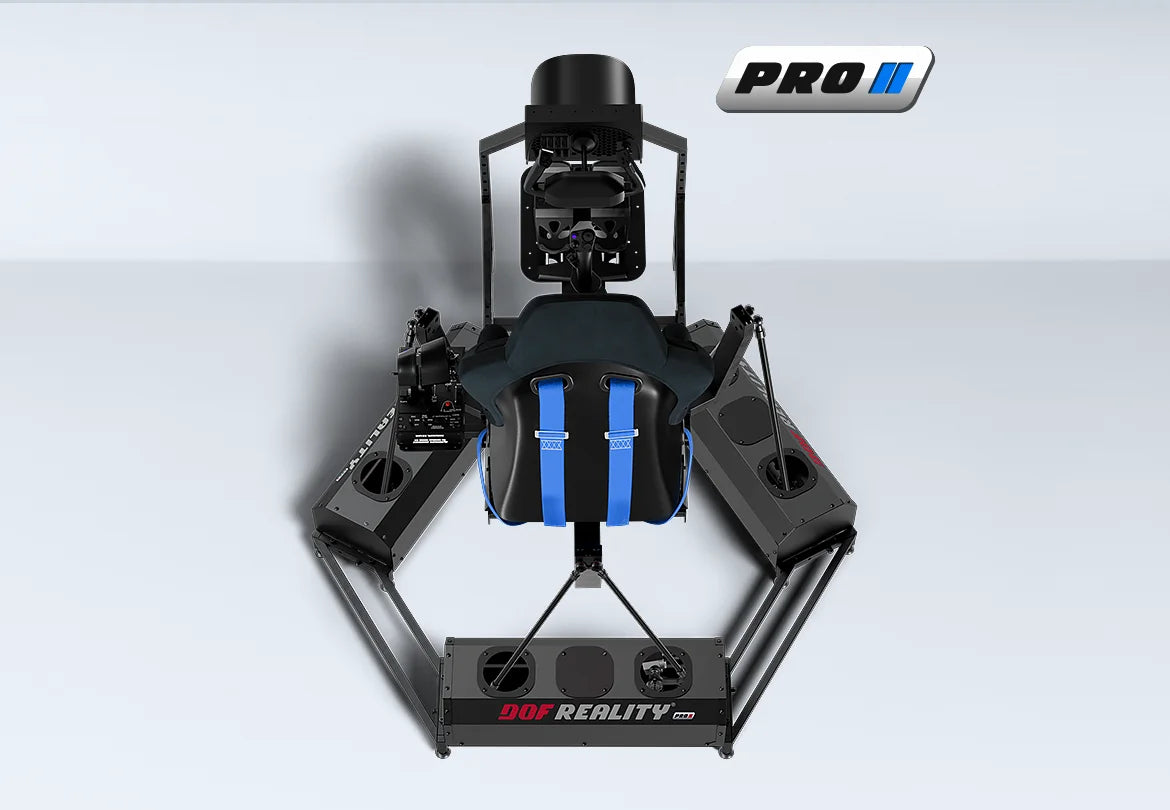

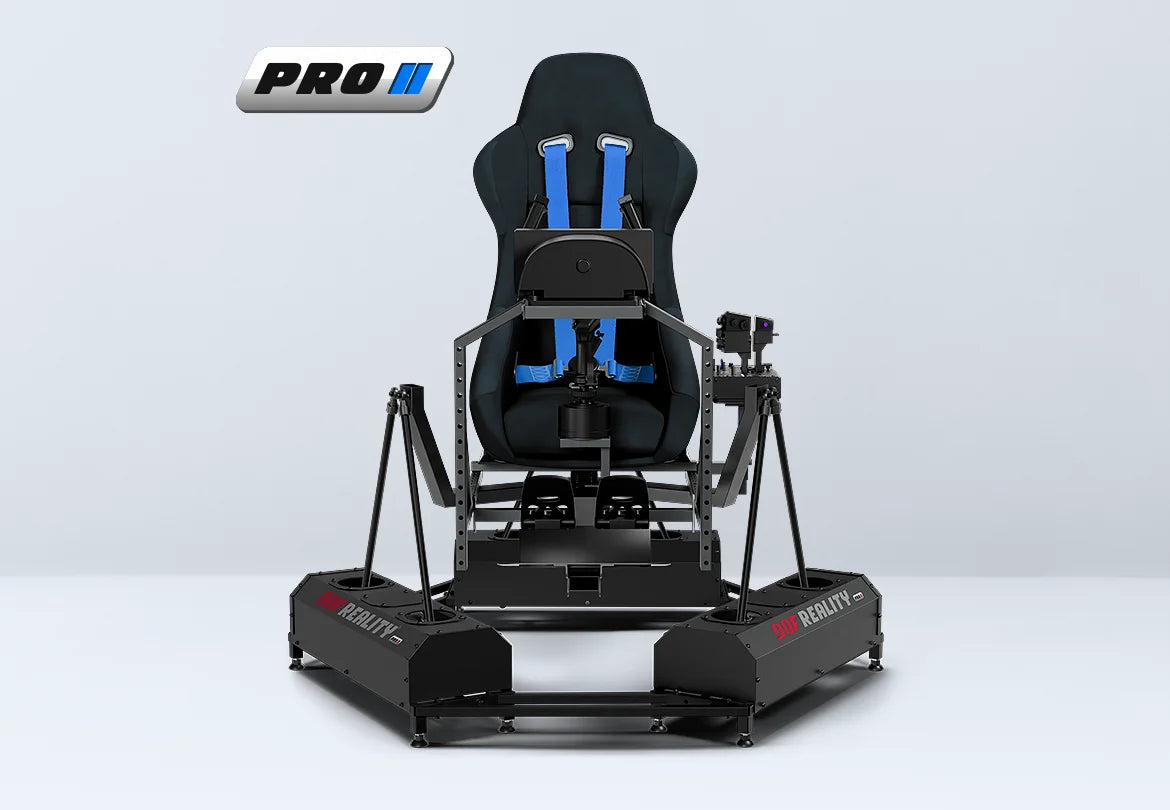

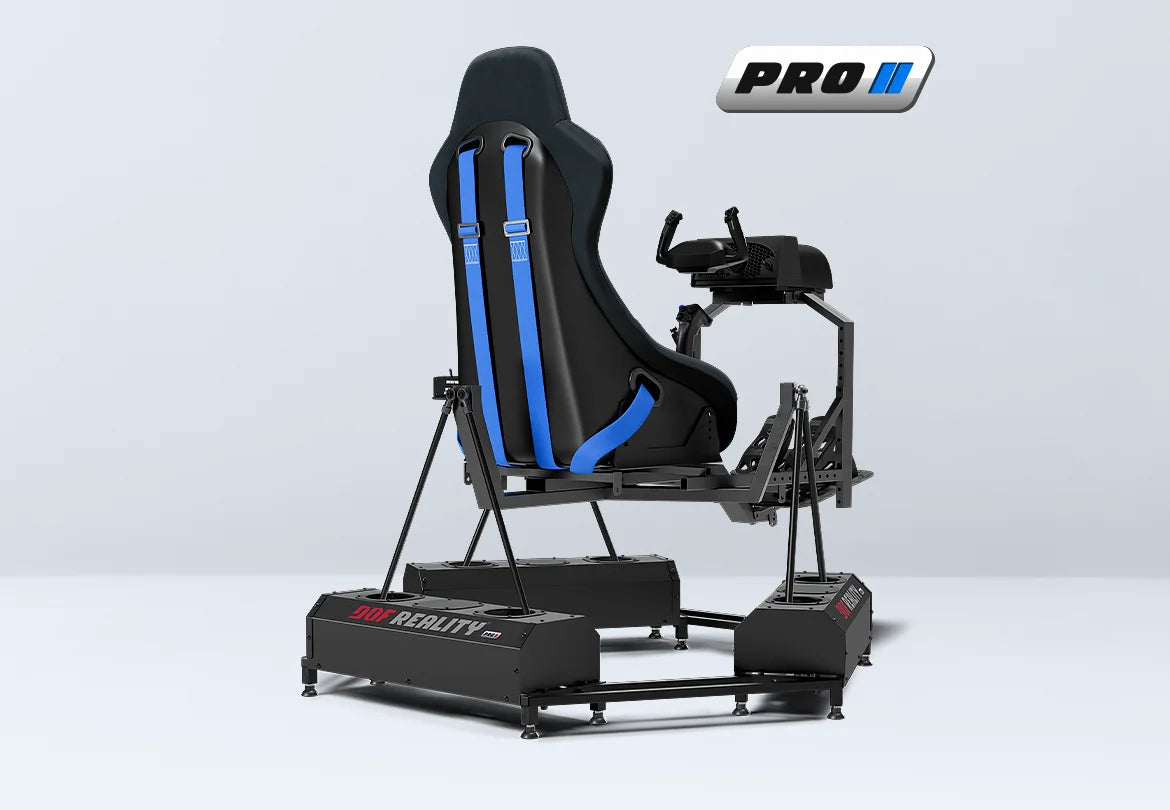

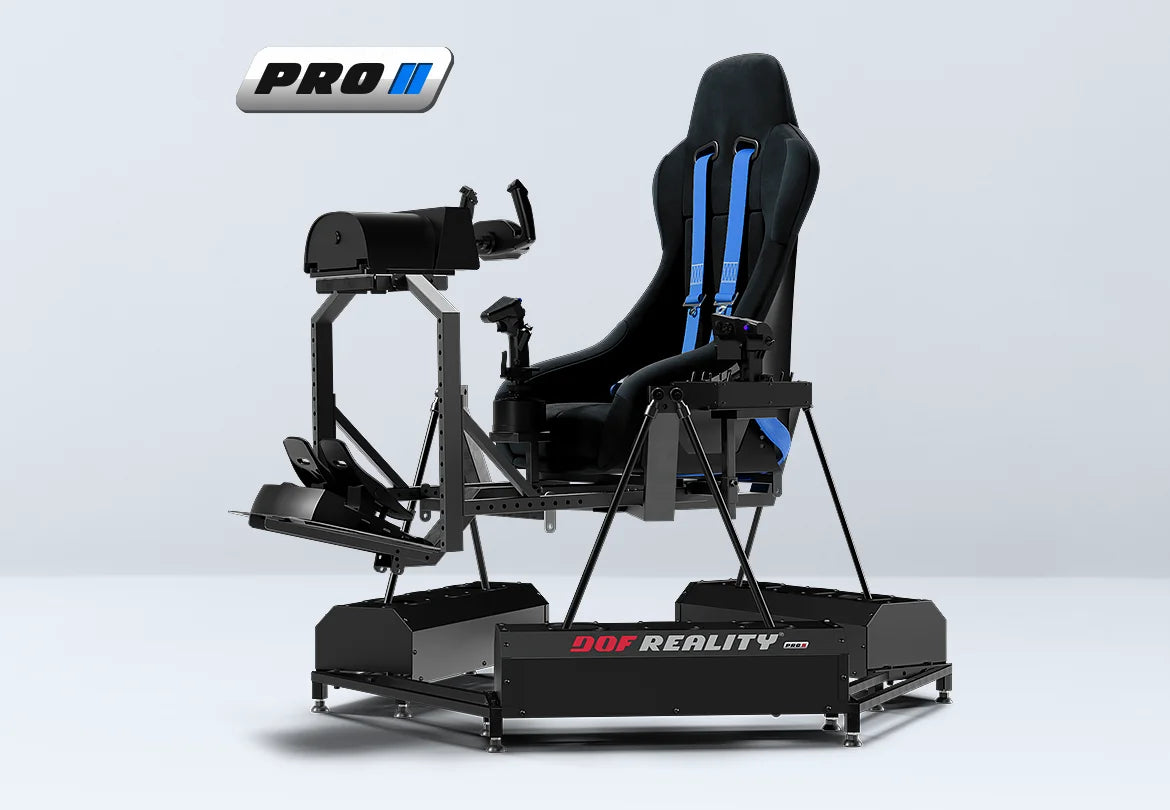

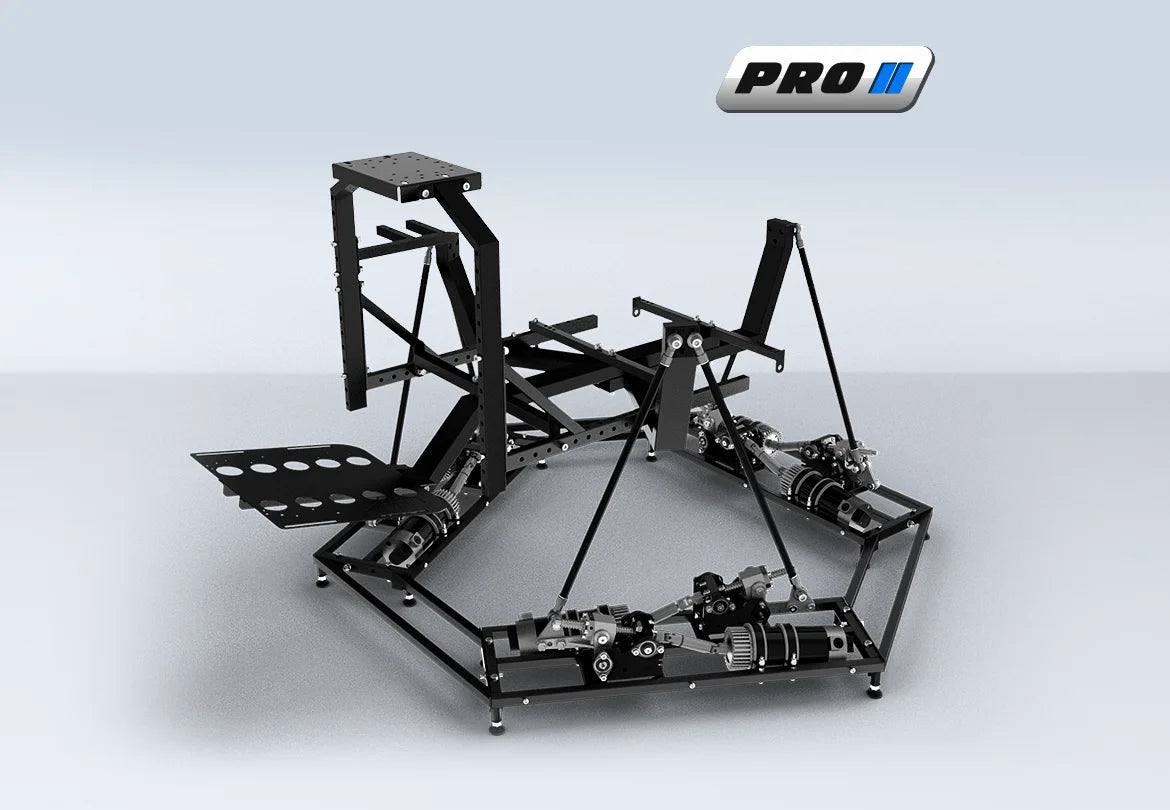

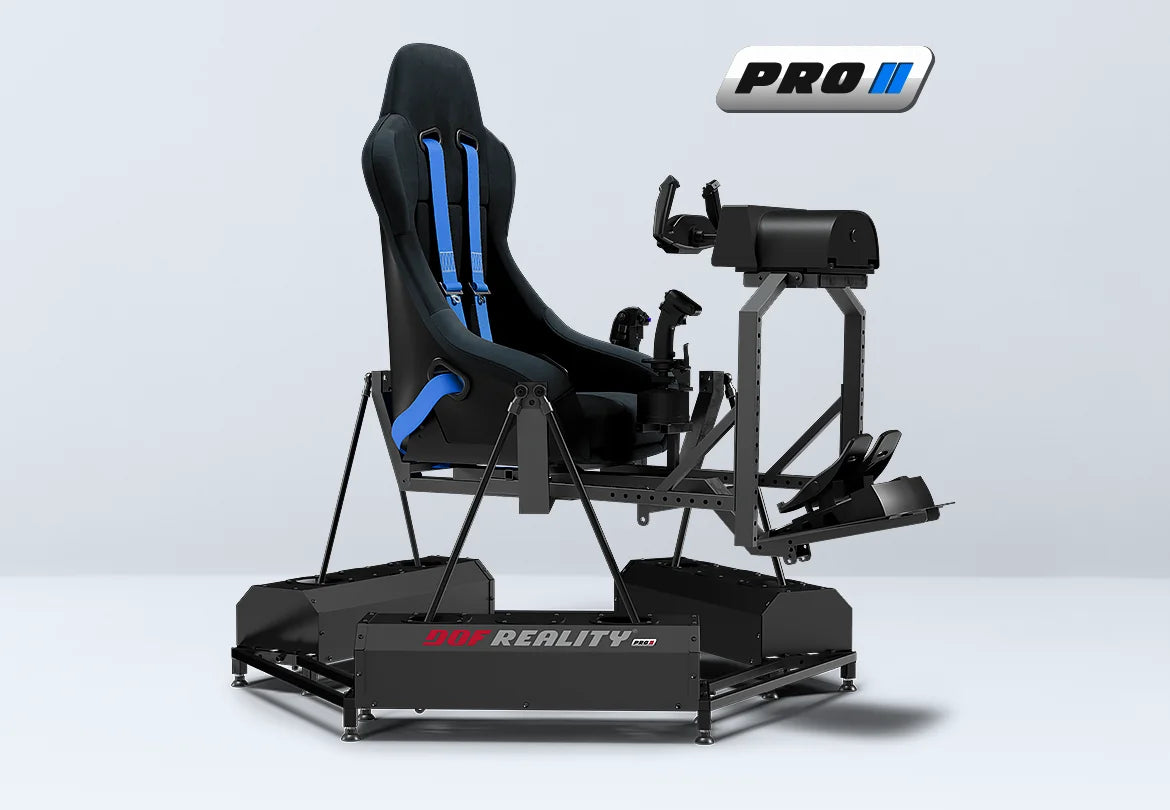

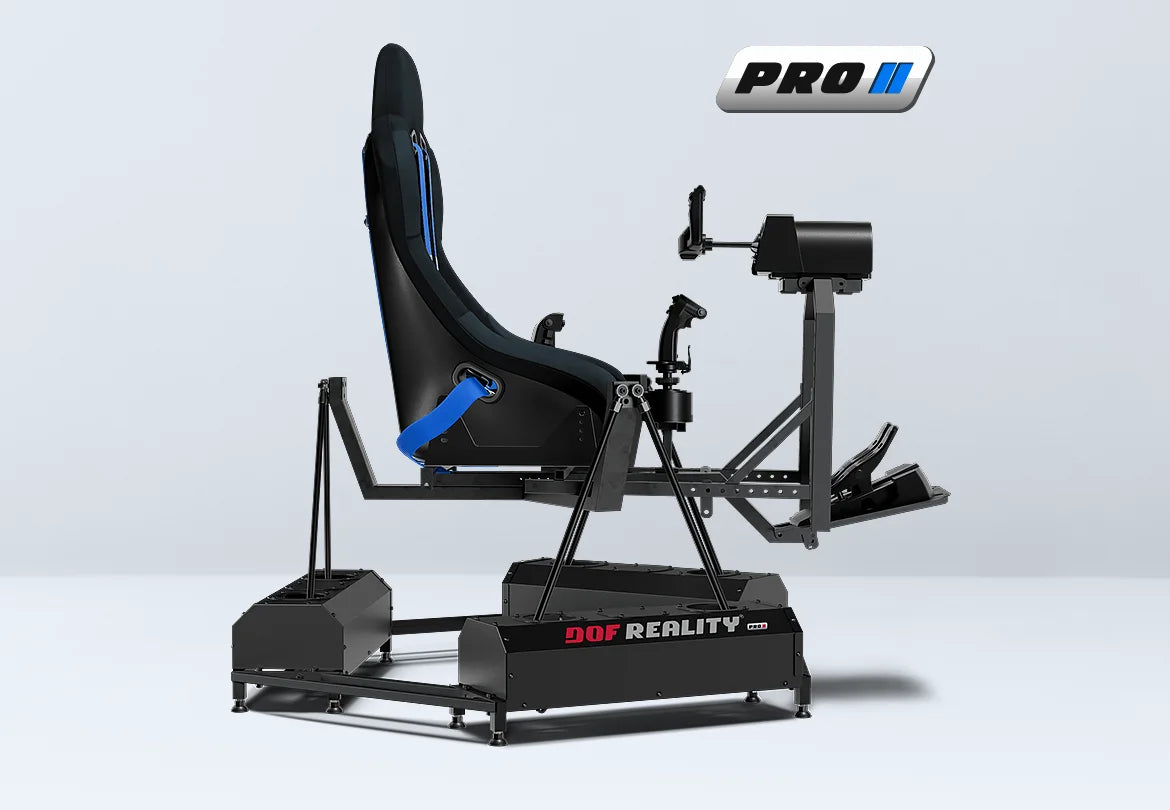

The DOF Reality PRO 6 Motion Flight Simulator Platform is a 6-degree-of-freedom motion simulator designed for commercial environments, professional training applications, and enthusiasts seeking the highest level of motion realism. Built with advanced engineering and full-platform motion technology, the PRO 6 accurately reproduces aircraft movements and forces through six independent axes of motion.

The platform moves the seat, monitor, yoke, joystick, and pedals together as a complete system, allowing users to experience motion feedback through body pressure points. Through integration with SimRacingStudio software, the PRO 6 converts real-time telemetry data into precise motion feedback, reproducing runway bumps, turbulence, vibrations, collisions, climbs, descents, and coordinated flight maneuvers.

Featuring pitch, roll, yaw, surge, sway, and heave movement, the PRO 6 is designed to simulate aircraft acceleration and directional changes with greater realism than traditional motion platforms. It is supplied as a plug-and-play solution with integrated motors, control electronics, motion software, and mounting hardware included.

Features

• 6 DOF motion simulator platform
• Designed for flight simulation, helicopter simulation, and racing simulation
• Full platform motion system
• Simulates pitch, roll, yaw, surge, sway, and heave movements
• Additional gearbox on each motor for smoother motion
• Seat, monitor, pedals, joystick, and yoke move together with the platform
• Telemetry-based motion feedback
• Simulates runway bumps, turbulence, vibrations, and collisions
• Simulates climbs, descents, coordinated turns, and acceleration forces
• Separate front and rear roll centers for body roll and yaw simulation
• SimRacingStudio software support
• Commercial-grade metal profile construction
• Plug-and-play design
• Integrated power drive motors
• USB control unit included
• Assembly tools included
• Supports user-supplied seats, VR systems, wheels, pedals, yokes, and controllers

Specifications

• Product Name: DOF Reality PRO 6 Motion Flight Simulator Platform
• Degrees of Freedom: 6 DOF (Pitch, Roll, Yaw, Surge, Sway, Heave)
• Full Platform Motion: Yes
• Range of Motion: 17°
• Speed: 75 cm/s (105°/s)
• Torque: 28 N/m
• Acceleration: 0.5G in all directions
• Peak Power Consumption: 1500W
• Floor Footprint:
• 4 × 5 ft
• Height: 2 ft
• 120 × 150 cm
• Height: 60 cm
• Material: Commercial-Grade Metal Profiles
• Supported Pilot Weight: 440 lbs / 200 kg
• Box 1 Weight & Size:
• 133 lbs
• 32 × 28 × 12 in
• 60 kg
• 80 × 70 × 30 cm
• Box 2 Weight & Size:
• 144 lbs
• 32 × 28 × 12 in
• 65 kg
• 80 × 70 × 30 cm

Included

• Rigid metal motor covers
• Metal rig for normal and F1 seating positions
• Mounts for seat or sliding rails
• Integrated power drive motors
• 100–240V control unit with USB
• SimRacingStudio license
• Quick assembly tools
• Necessary cables
• Motion software

Not Included

• Seat
• VR equipment
• Controllers (wheel, pedals, yoke, joystick, etc.)
• Games

Warranty

• Full 1-Year Warranty
