About

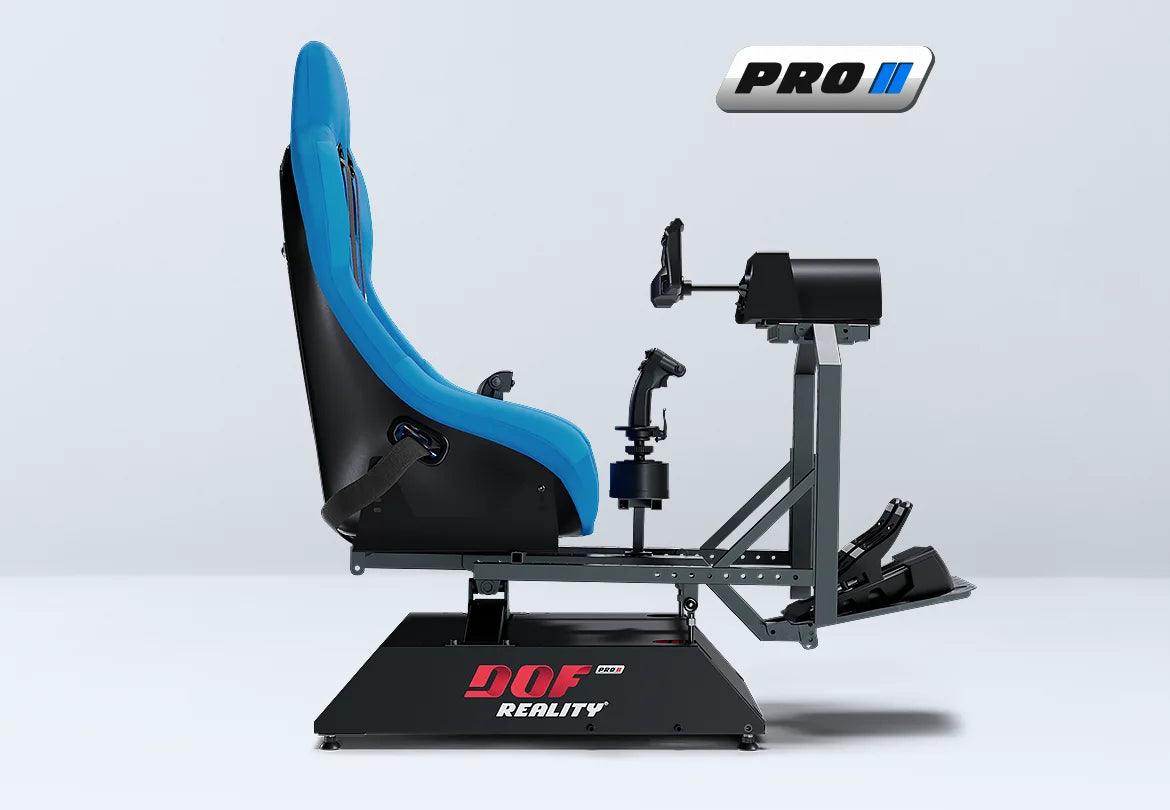

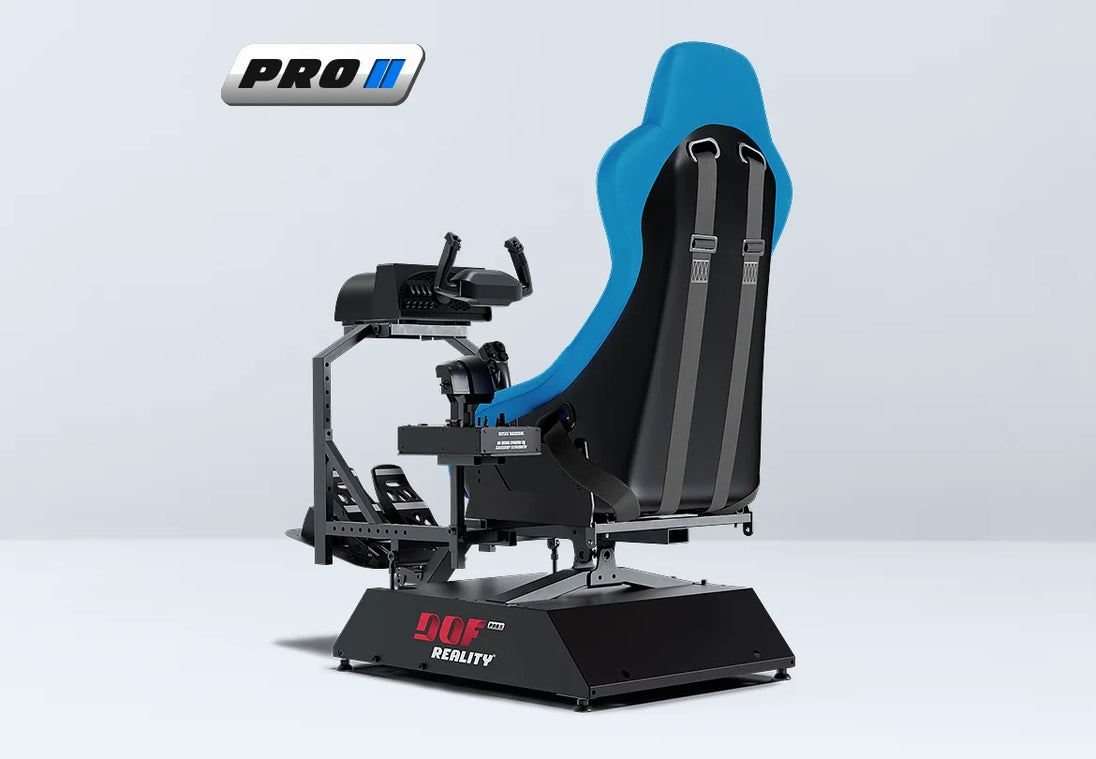

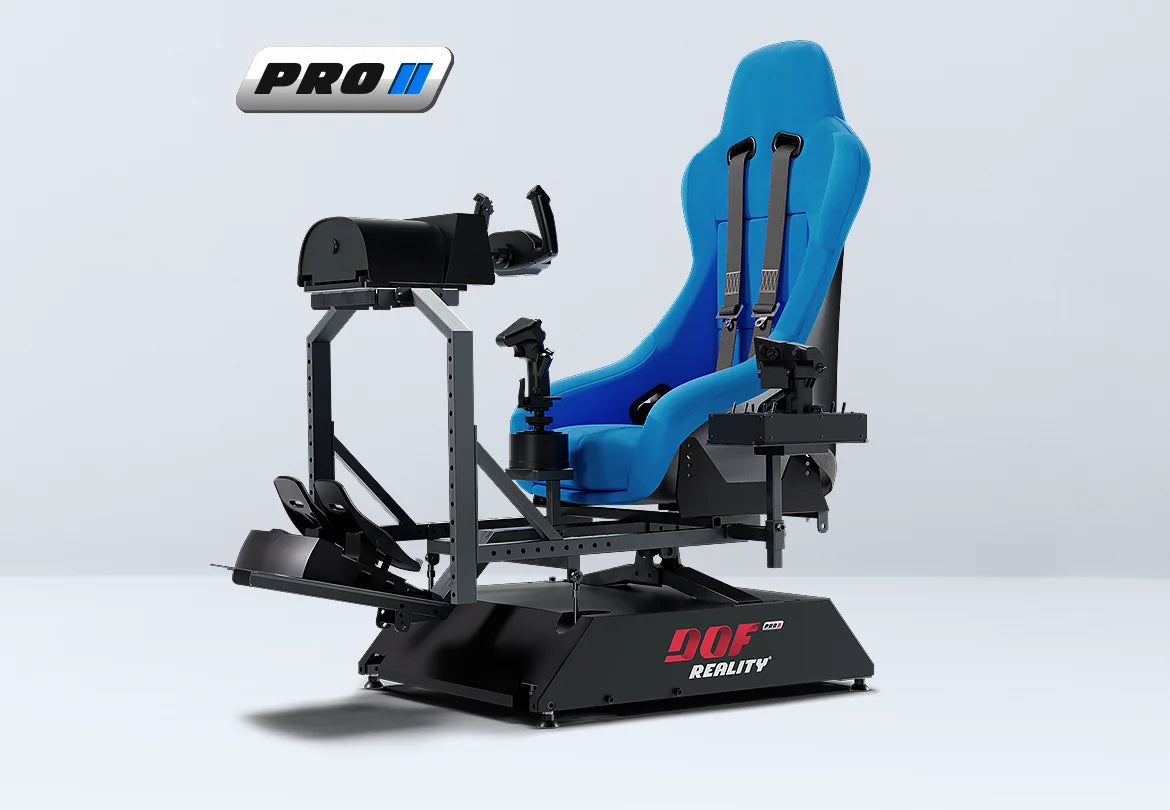

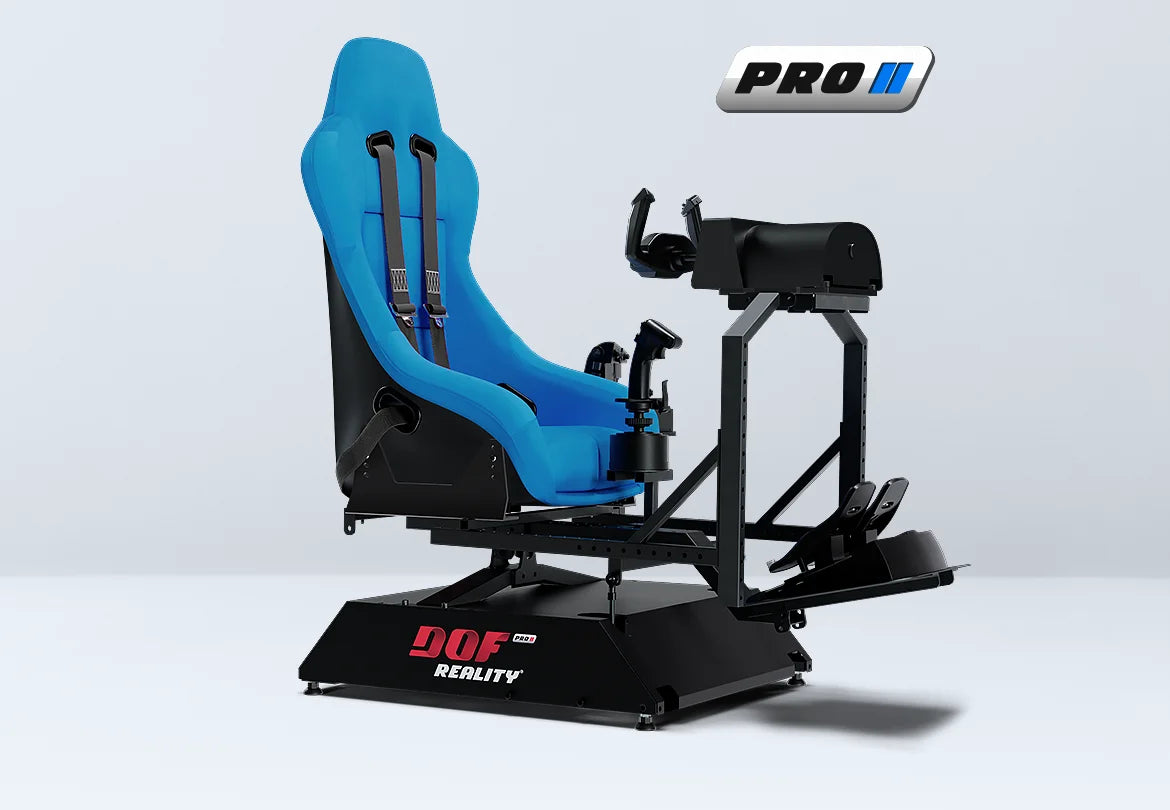

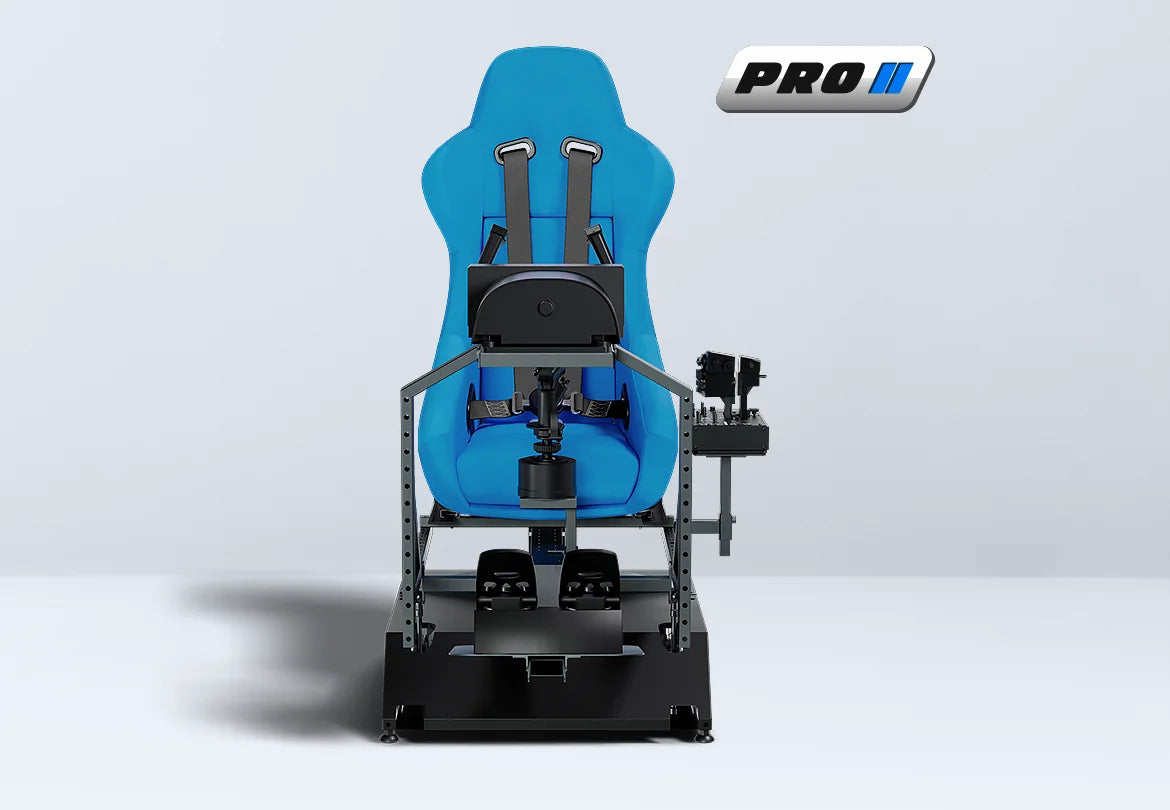

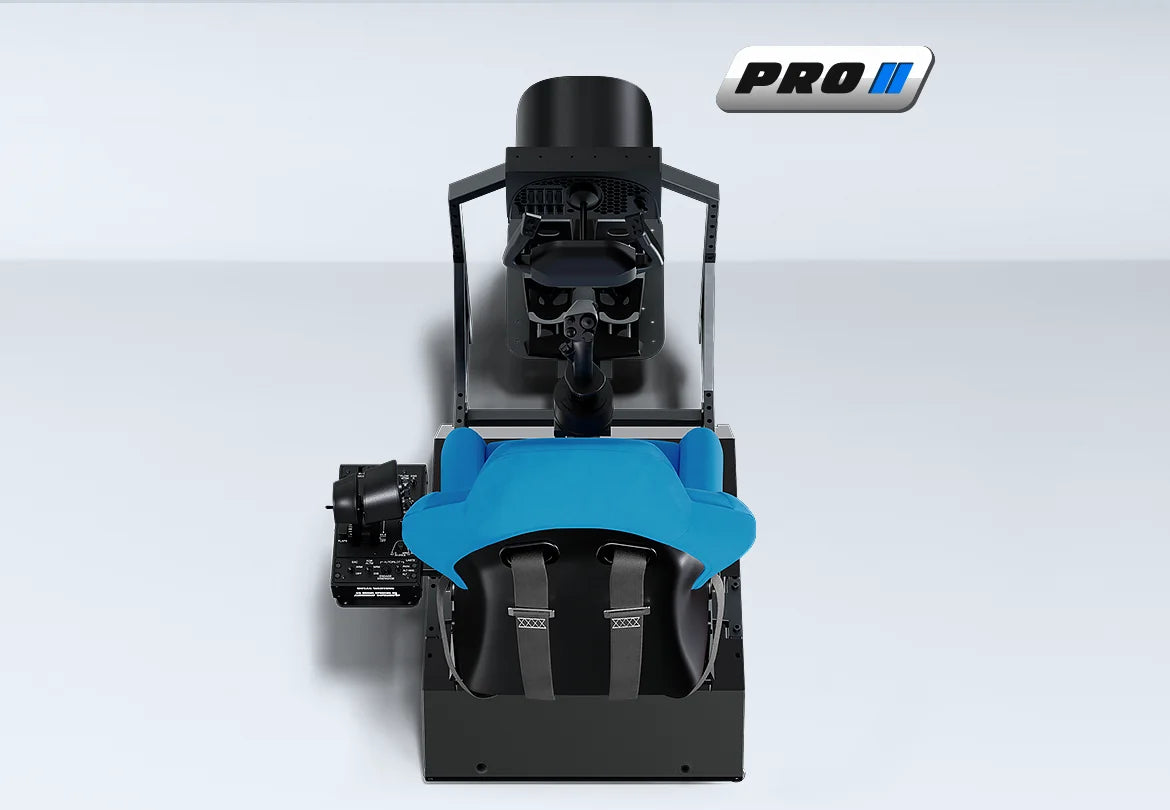

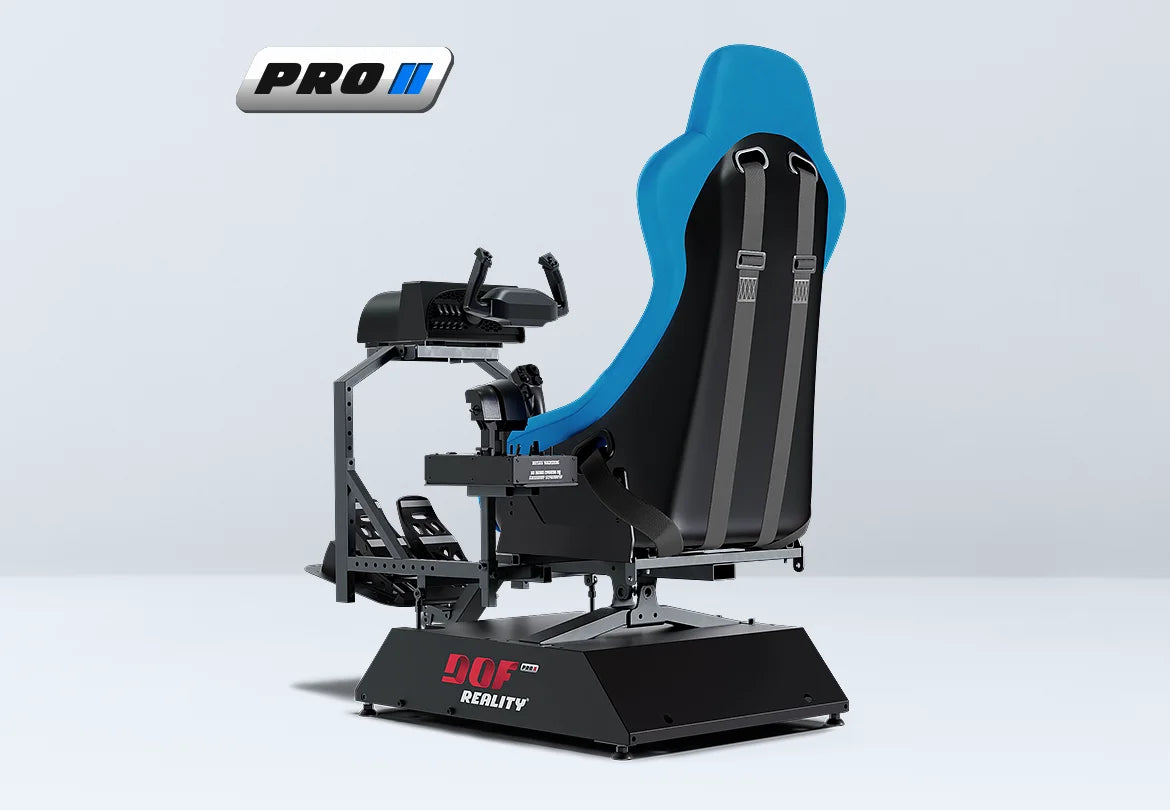

The DOF Reality PRO 2 Motion Flight Simulator Platform is a 2-degree-of-freedom motion simulator designed for commercial environments and businesses seeking an immersive flight simulation experience. Engineered for flight simulation, helicopter simulation, and racing applications, the PRO 2 combines full-platform motion with additional gearboxes on each motor to provide smoother movement during slow-motion simulation scenarios.

The platform moves the seat, monitor, yoke, joystick, and pedals together as a complete system, allowing users to experience motion feedback through body pressure points. Designed to replicate aircraft movements with precision, the PRO 2 simulates pitch and roll movements while maintaining compatibility with a wide range of simulation hardware.

Built with commercial-grade metal profiles and supplied as a plug-and-play solution, the PRO 2 includes integrated motors, control electronics, motion software, and mounting hardware. It is designed to support user-supplied seats, VR systems, flight controls, steering wheels, and pedals.

Features

• 2 DOF motion simulator platform
• Designed for flight simulation, helicopter simulation, and racing simulation
• Full platform motion system
• Simulates pitch and roll movements
• Additional gearbox on each motor for smoother motion
• Seat, monitor, pedals, joystick, and yoke move together with the platform
• Simulates motion feedback through body pressure points
• Commercial-grade metal profile construction
• SimRacingStudio software support
• Plug-and-play design
• Integrated power drive motors
• USB control unit included
• Assembly tools included
• Supports user-supplied seats, VR systems, wheels, pedals, yokes, and controllers

Specifications

• Product Name: DOF Reality PRO 2 Motion Flight Simulator Platform
• Degrees of Freedom: 2 DOF (Pitch + Roll)
• Full Platform Motion: Yes
• Range of Motion: 20°
• Speed: 75 cm/s (105°/s)
• Torque: 28 N/m
• Acceleration:
• 0.75G T
• 0.5G L
• Peak Power Consumption: 500W
• Floor Footprint:
• 2 × 5 ft
• Height: 2 ft
• 59 × 150 cm
• Height: 60 cm
• Material: Commercial-Grade Metal Profiles
• Supported Pilot Weight: 440 lbs / 200 kg
• Box 1 Weight & Size:
• 64 lbs
• 37 × 15 × 11 in
• 29 kg
• 94 × 38 × 28 cm
• Box 2 Weight & Size:
• 64 lbs
• 32 × 24 × 10 in
• 29 kg
• 80 × 60 × 25 cm
• Upgrade Options:
• P3
• P6

Included

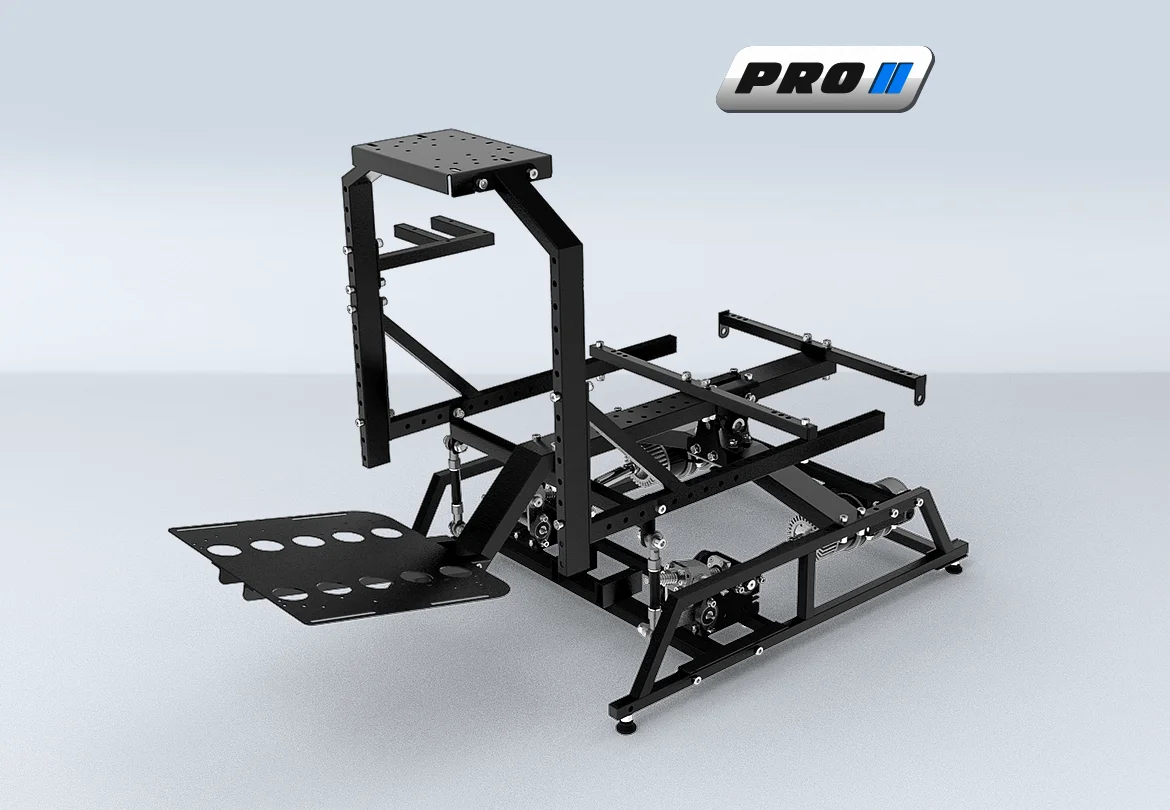

• Rigid metal rig for normal and F1 seating positions
• Mounts for seat or sliding rails
• Integrated power drive motors
• 100–240V control unit with USB
• SimRacingStudio license
• Quick assembly tools
• Necessary cables
• Motion software

Not Included

• Seat
• VR equipment
• Controllers (wheel, pedals, yoke, joystick, etc.)
• Games

Warranty

• Full 1-Year Warranty
